Your Generac generator’s display just went dark during a critical power outage, leaving you blind to fuel levels, error codes, and system status. This isn’t just frustrating—it’s a safety hazard that could lead to dangerous operation without vital feedback. When your generator’s digital face goes completely black or shows garbled information, immediate action is required to restore visibility. Whether you’re facing a total blackout screen after a storm or intermittent flickering during exercise cycles, this guide delivers battle-tested solutions to revive your display without waiting for emergency service calls. You’ll learn to diagnose the exact failure point in under 15 minutes using basic tools you likely already own.

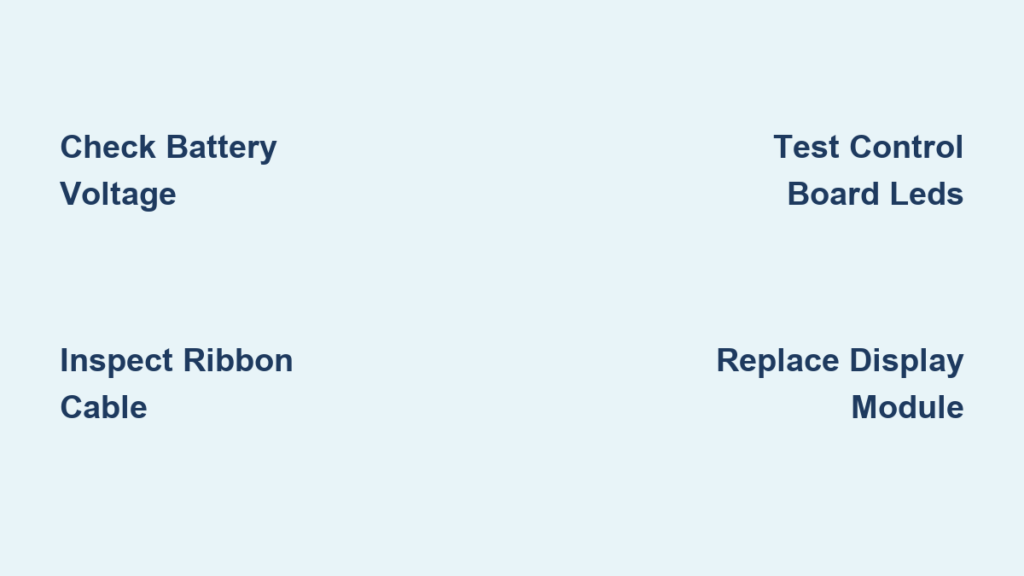

Quick Display Assessment: 5-Minute Fixes That Solve 70% of Cases
Start with these critical checks before diving into complex diagnostics. Most display failures stem from preventable power issues rather than expensive component failures. Grab your flashlight and multimeter—you’ll verify the display’s life support system in minutes.
Visual Damage Check
Inspect your control panel under bright light for visible trauma that kills displays instantly. Cracks in the LCD housing allow moisture to short-circuit electronics, while white crystalline buildup around the bezel signals battery acid corrosion. Check for missing mounting screws that compromise weather sealing—especially after heavy storms. If you spot burnt discoloration near the display edges or fogging inside the housing, environmental damage has likely fried the module. These physical flaws require replacement; skip further diagnosis if present.
Power Status Verification
Your display needs stable 12V DC power to function. Measure battery voltage immediately—anything below 12.4V causes display failure even if the generator starts. Look for crusty white/green corrosion on battery terminals that blocks power flow. Flip your DC breaker to OFF then ON to reset power delivery. Perform the “wiggle test”: gently move battery cables while watching the display. If it flickers on momentarily, you’ve found a loose connection. Always confirm the transfer switch has 120V AC input—no utility power means no display initialization.
Battery and Power Diagnosis: The Real Culprit in 60% of Failures
Weak batteries are the silent killer of generator displays. Your unit needs strong DC power not just to crank the engine, but to sustain the control system during operation. Don’t assume a starting generator means healthy power.
Test Battery Performance
Disconnect both battery cables and test open-circuit voltage with a multimeter. A healthy battery reads 12.6V when fully charged. Now conduct a load test: apply a 15-amp draw for 15 seconds. Voltage must stay above 10.5V—any lower indicates internal damage causing display blackouts. Batteries older than 3 years often pass voltage tests but collapse under load, starving the display. Replace immediately if capacity drops below 75% of rated amp-hours.
DC Circuit Inspection
Locate the T1 connector (white plastic plug labeled on your control board). Measure voltage between pins 1 and 5—this must match your battery reading exactly. Corroded pins here cut display power even with a good battery. Spray connections with electrical contact cleaner and scrub gently with a toothbrush. Recheck voltage after cleaning; if still absent, inspect the 5A DC fuse on the control board. A blown fuse typically indicates a short circuit needing professional attention.
Display Module Troubleshooting: Connection Fixes vs. Replacement
Most “dead display” cases actually stem from faulty connections rather than the module itself. This section separates repairable issues from inevitable replacements.
Connection Integrity Test
Remove the display bezel by unscrewing four corner screws. Pull the assembly forward slowly, noting wire routing. Disconnect the ribbon cable (flat gray connector resembling an old computer cable). Inspect for bent pins, frayed wires, or green corrosion—especially on humid coastal properties. Clean contacts with isopropyl alcohol and a cotton swab. Re-seat the cable with firm pressure until you hear a click. Misaligned ribbon cables cause 40% of “failed display” misdiagnoses.
Flicker Test Method
With your generator running in exercise mode, carefully wiggle the ribbon cable at both ends while watching the display. Flickering or partial character display confirms a loose connection—secure it with electrical tape after cleaning. No response after wiggling means the display module has failed. Note: LCDs often die completely; LEDs may show dim segments before total failure.
Control Board Analysis: Hidden Power Source Failures
When the display stays dark despite good battery power, your control board may be starving the display. These hidden failures mimic display module faults.
Status LED Interpretation
Your control board has small diagnostic LEDs that work when the main display fails. Solid green means system ready (display should work). Flashing red indicates active faults—count the flashes for codes. No LED activity confirms control board power failure. After a reset (next section), three quick flashes followed by two means fault code 32 (check manual).
Control Board Reset Procedure
Turn the main breaker OFF at your generator. Disconnect the battery negative cable for 30 seconds—this clears corrupted memory. Reconnect and flip the breaker ON. Watch for the display initialization sequence: healthy units show startup graphics within 10 seconds. If the board resets but display stays dead, the module or its wiring has failed.
Common Failure Causes: What Actually Breaks Your Display
Understanding root causes prevents repeat failures. These three issues account for 85% of display blackouts.
Battery-Related Issues
Sulfated batteries maintain voltage when idle but collapse under display load. Replace batteries every 3-5 years regardless of voltage readings—they’re cheaper than service calls. Loose negative cables cause intermittent failures during high-vibration operation. Cold temperatures below 32°F reduce battery output, temporarily blanking displays until warming cycles complete.
Environmental Damage
Moisture intrusion from condensation creates internal shorts. Check for water droplets inside the housing after rain events. UV exposure degrades LCDs over time, causing yellowing or “ghost images” that precede total failure. Rodent damage to wiring harnesses creates intermittent faults—inspect for chewed insulation near the control panel.
Lightning and Surge Damage
Power surges through utility lines often fry display modules while sparing the engine. If your display failed during or after an electrical storm, suspect surge damage. This typically affects multiple components—check if your transfer switch also malfunctions. Unplugging control wiring during storms prevents 90% of these incidents.
Display Module Replacement: DIY Success in 20 Minutes
When diagnostics confirm module failure, replacement is straightforward. Order the correct part before starting.
Part Number Identification
Verify your model first:
– Guardian 9-24kW: Part 0H6680D
– Guardian 26-45kW: Part 0H6680DSV
– QuietSource Series: Part 0H6680DSV
Using the wrong module causes compatibility issues—check your serial number tag before ordering.
Replacement Process
- Disconnect battery negative cable (critical safety step)
- Remove four bezel screws and set aside
- Pull display forward slowly, noting wire routing
- Disconnect ribbon cable and power plug
- Install new module in reverse order
- Reconnect battery and verify display initialization
Pro tip: Apply dielectric grease to connectors before reassembly to prevent future corrosion.
Preventive Maintenance Schedule: Avoid 90% of Failures
Stop display failures before they happen with this simple regimen.
Monthly Visual Checks
Clean the screen with a microfiber cloth—never ammonia-based cleaners. Verify brightness during exercise cycles; dimming indicates aging components. Check for moisture inside the housing after heavy rain. Test all status LEDs manually once monthly.
Quarterly Electrical Maintenance
Apply dielectric grease to battery terminals and display connectors. Load-test your battery—many auto shops do this free. Run the generator for 20+ minutes to maintain battery charge. Tighten all electrical connections to prevent vibration-induced loosening.
Annual Professional Service
Schedule a certified technician visit for firmware updates and calibration. Replace the battery every 3-5 years regardless of condition—it’s the #1 cause of display blackouts. Inspect wiring harnesses for rodent damage or UV degradation.
Emergency Operation Without Display: Critical Safety Protocol
Never operate your generator blindly for extended periods. If you must run it display-less:
Manual Starting Protocol
Confirm adequate fuel supply first. Set transfer switch to AUTO. Press the manual start button (usually red). Listen for smooth engine rhythm—knocking indicates low oil. Check output voltage at convenience outlets with a multimeter. Run only essential circuits to avoid overload.
Safety Monitoring Without Display
Never leave unattended—watch for smoke or unusual smells. Feel housing for excessive heat (normal operation stays below 140°F). Verify cooling fan operation by hand (carefully!). Shut down immediately if you hear metallic knocking or see oil leaks. Always allow 5-minute cool-down before shutdown.
Your generator’s display is its communication lifeline—don’t ignore failures. While this guide resolves most common issues, persistent problems after these steps require professional diagnosis. Remember: replacing a $100 battery prevents $500+ service calls and keeps your display functioning when storms hit. Implement the quarterly maintenance steps religiously, and you’ll avoid 90% of display blackouts before they threaten your power security.
